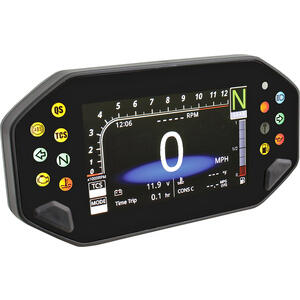

Gauge kit Yamaha MT-07 -'20 Koso RX-04

Electronic multifunction gauge Koso RX-04 suitable for several Yamaha MT-07, MT-09, XSR 700 and XSR 900: complete plug & play kit for mounting without any modification to the original electrical system of the bike. The ultra-bright display ensures a clear and fast reading of the information: ideal for elaborations in perfect Cafe Racer style, it gives the bike a clean and elegant look. Complete with 5 control lights: winkers, high beam, neutral, ABS, engine warning, anti-theft light, shift light, coolant temperature warning light, low fuel warning light, Tracking control signal, Quick switch signal. Ultra bright backlight display: with European Homologation. Complete with instructions and connectors.

Features:

• dimensions: width 170mm, height 86mm, thickness 42.5mm
• digital speedometer 0-360km/h(0-225mp/h)
• odometer 0-99,999.9km and 2 tripmeters resettable 0-99,999.9km
• tachometer 0/15.000rpm with selectable shifting light 5.000/15.000rpm
• gear position: N and from 1 to 6
• engine temperature 0-250°C with warning
• clock 12/24h with hour meter
• engine oil: level and service countdown
• voltmeter: 8-18V with low and high voltage warning
• bluetooth connection status: Steady (connected), OFF (Unconnected)
• phone battery: display range 3 bars
• incoming phone call notice: display name or number up to 12 letters
• music playing message: music name up to 15 letters, singer name up to 18 letters, total length of the music and current playing time
• information Push: display range Name and Content up to 17 letters
• Driving mode: STD, A, B
• TCS display: 1, 2, OFF
• ultrabright backlight display with selectable 5 levels intensity and color
• weight: 244gr
